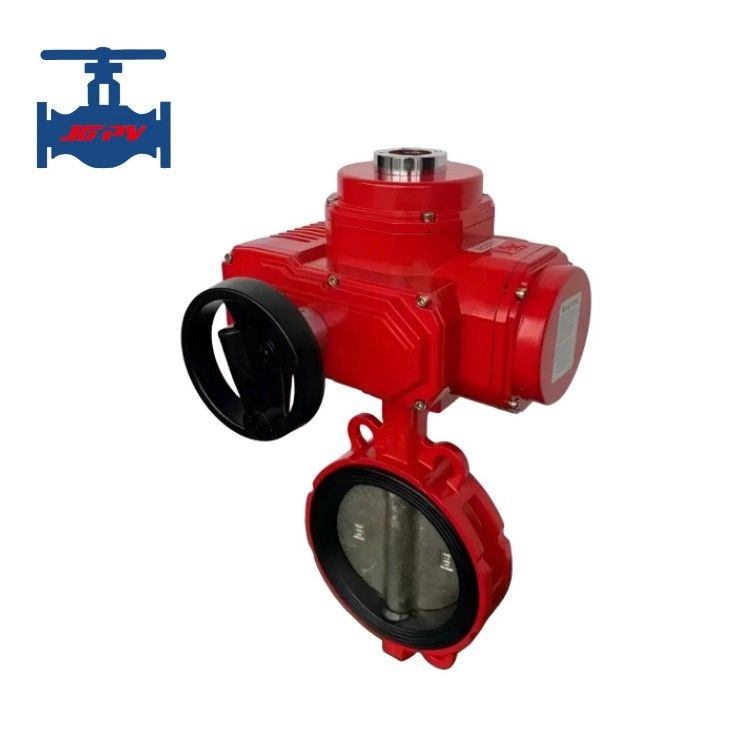

Electric butterfly valve

Highlight: Electric butterfly valve

Product introduction:

The sealing types of electric wafer butterfly valves for sewage are divided into several forms: triple-eccentric metal-sealed

electric wafer butterfly valves, hard-sealed electric wafer butterfly valves, soft-sealed electric wafer butterfly valves, center-

line soft-sealed electric wafer butterfly valves, and double-eccentric soft-sealed electric wafer butterfly valves. Composed

of partial rotary electric actuators and wafer-type butterfly valve bodies, these valves are suitable for occasions with narrow

site space and short pipeline distances. The butterfly valve body features no internal linkages or bolts, ensuring reliable

operation and long service life. It allows multi-station installation without being affected by the medium flow direction. Widely

applied in ventilation systems of chemical, building materials, power stations, glass industries, and dust-laden cold/hot gas

pipelines for environmental protection projects, they function as flow regulation or shut-off devices for gaseous media.

Product technical parameters:

Product features:

1. Compact and Lightweight: The volume and weight are only about 35% of traditional products.

2. Elegant Appearance: Die-cast aluminum alloy shell with exquisite and smooth design, which can reduce electromagnetic

interference.

3. Reliable Performance: Key components such as bearings and electrical elements adopt imported brand products.

4. Precision and Wear Resistance: The worm gear output shaft is forged with integrated special copper alloy, featuring high

strength and excellent wear resistance.

5. Minimal Backlash: The integrated structure avoids clearances from key connections, ensuring high transmission accuracy.

6. Safety Guarantee: Passed 1500V withstand voltage test, with F-class insulated motor for guaranteed safety.

7. Simple Matching: Uses single-phase power supply with simple external wiring; can also be adapted to 380V or DC

power supply.

8. Easy to Use: No need for oiling or regular inspection, waterproof and rust-proof, and can be installed at any angle.
