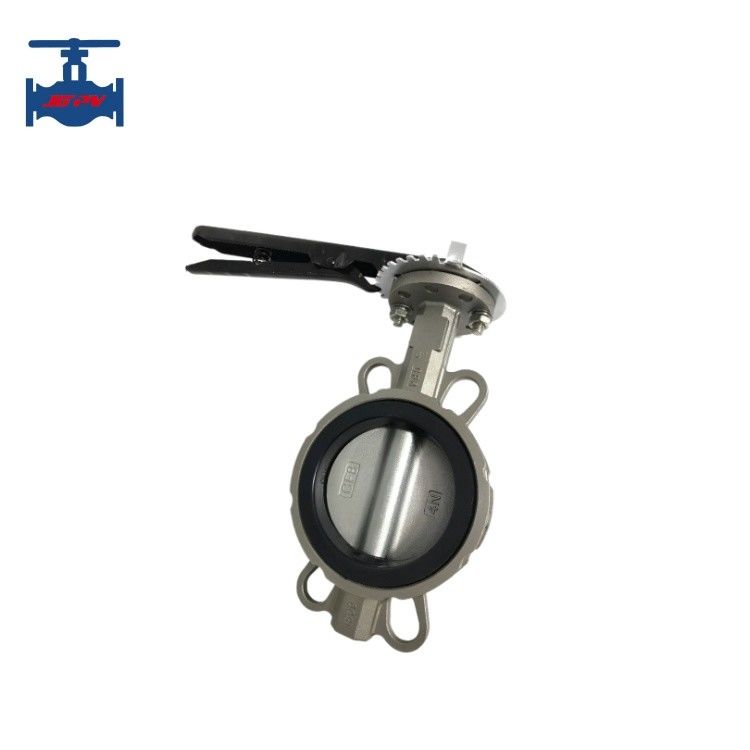

Centerline butterfly valve (concentric butterfly valve)

Detalhes do produto

Place of Origin: China

Termos de pagamento e envio

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,Western Union,T/T

Supply Ability: 100pcs per month

Obtenha o melhor preço

Detalhes do produto

Descrição do produto

Destacar:

Application::	General	Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow way::	Two way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow way::	Two way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Centerline butterfly valve (concentric butterfly valve)

Highlight: Centerline butterfly valve (concentric butterfly valve)

Product introduction:

Middle-line soft seal butterfly valve is the preferred conventional butterfly valve for pipeline. The utility model has the advantages of simple structure, small flow resistance coefficient, near-straight flow characteristics, and is free of debris, in light weight, convenient to be installed, and small in driving torque. This valve can be used to cut off media and also to regulate the flow of media used. Its actuating device can be made according to user's requirements, either in manual, electric, pneumatic, or other forms. Different materials are selected and seal rings of different materials are provided. The valve is applicable to different media and working conditions and makes the cost and performance to achieve the best match.

Product technical parameters:

Nominal Diameter DN (mm)		40~150
Nominal Pressure PN (MPa)		1.0~1.6
Test Pressure (MPa)	Strength (water)	1.5~2.4
Test Pressure (MPa)	Enclose (Water)	1.1~1.76
Main Components	Valve body	HT200
	Disc	QT450-10
	Seat	NBR
	Axle	2Cr13
Working temperature		≤80℃
Medium suitable		Water and oil
Connection		Wafer type

Product features:

1.Compact and portable, easy to remove and maintain, and can be installed at any position;

2. Its flow characteristic tends to be straight line and it is of great regulating performance;

3. Simple structure, compact, small operating torque and fast opening by only rotating 90 degrees;

4. Internal leakage point is eliminated by connecting valve plate with valve rod without pin;

5.The encircle of valve plate is made as ball to improve the sealing performance and prolong the service life of valve, and there is zero leakage after the valve has been opened and closed for 50,000 times under pressure;6.Sealing element can be replaced, and suitable for two-way seal box.

6.The butterfly disc can be painting as the request.

7.The valve can be flange or the wafer.

8.The motivation can be the handle, pneumatic and electrically operated valve.
