Welded ball valve

Detalhes do produto

Place of Origin: China

Termos de pagamento e envio

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Obtenha o melhor preço
Destacar:
Application::
General
Medium Type::
Water, steam and oil etc.
Mounting Type::
Direct Mount
Standard Or Non-Standard::
Standard
Flow way::
two way
Actuation::
Manual, Electric, Pneumatic,Automatic
Sealing Performance::
Sealing
Working Temperature::
Normal Temperature And High Temperature
Pressure Application::
Normal Pressure
Quality Warranty::
18 Months
Application::
General
Medium Type::
Water, steam and oil etc.
Mounting Type::
Direct Mount
Standard Or Non-Standard::
Standard
Flow way::
two way
Actuation::
Manual, Electric, Pneumatic,Automatic
Sealing Performance::
Sealing
Working Temperature::
Normal Temperature And High Temperature
Pressure Application::
Normal Pressure
Quality Warranty::
18 Months

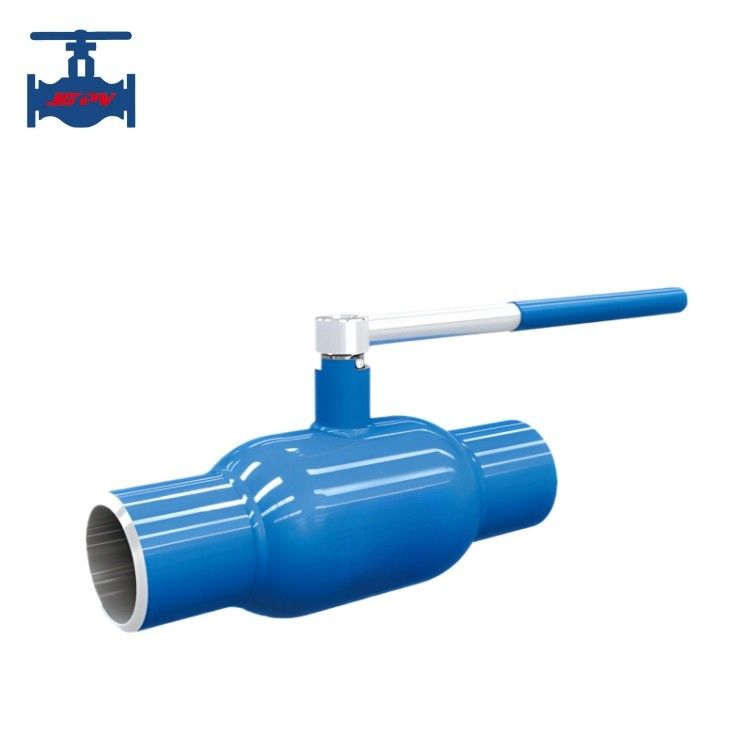

Welded ball valve

Highlight: Welded ball valve


Product introduction:


The fully welded ball valve, with its excellent performance, is widely used in urban gas underground pipe networks, central

heating systems, natural gas transmission pipelines, pressure regulating stations and other fields. After 30 years of deep

cultivation, through continuous technological innovation and quality upgrading, the product has been exported to more than

30 countries, gaining high recognition and trust from global users. The fully welded ball valve adopts an integrated full-welding

process design, which fundamentally enhances the sealing performance of the valve and effectively eliminates the risk of

internal and external leakage. The valve body is made of high-quality pipes or A105 forgings, and through precision machining

and strict testing, it is ensured that the valve body has no sand holes or defects, eliminating leakage hazards from the source.

This high-quality design not only significantly reduces the engineering construction cost but also greatly shortens the construction

period, providing a reliable guarantee for the efficient promotion of various projects.


Product technical parameters:


Nominal Diameter DN (mm)

15~500

Nominal Pressure PN (MPa)

1.6

Test Pressure (MPa)

Strength (water)

2.4

Enclose (Water)

1.76

Main Components

Body

WCB/CF8/CF8M

Valve ball

Stainless steel/Carbon steel

Seat

PTFE

Packing

Soft graphite

Shaft

2Cr13

Handle

Ductile iron

Working temperature

≤150℃

Medium suitable

Water, oil, steam


Product features:


1. Fully Welded Integrated Structure: The valve body adopts a full welding process, fundamentally eliminating the hidden

danger of external leakage. The compact and exquisite structure ensures efficient and convenient installation and

maintenance, significantly reducing engineering installation difficulty and time cost.

2. Smooth Operation with Low Torque: Using PTFE (polytetrafluoroethylene) metal bushing self-lubricating technology,

friction resistance is greatly reduced, enabling the valve to operate stably with low torque. This effectively reduces

equipment wear, extends service life, and lowers energy consumption and maintenance frequency.

3. Double Block and Bleed Function (DBB): When the valve is closed and both sides of the ball are under pressure, the

unique DBB function can quickly discharge the medium (gas or liquid) in the valve cavity through the drain valve, ensuring

safety during system maintenance and avoiding potential risks caused by residual media.

4. Dual Piston Effect Sealing Guarantee: The innovative dual piston effect seat structure achieves bilateral sealing driven

by pressure. If the upstream seat is damaged and leaks, the downstream medium pressure will immediately push the seat

to closely fit the ball, automatically switching to downstream sealing. This dual protection ensures continuous and stable

system operation.

5. Multi-Sealing for Long-Term Reliability: The floating seat can flexibly float along the valve centerline to achieve bidirectional

high-efficiency sealing. Under low pressure, the spring preload provides initial sealing; under high-pressure conditions, the

spring collaborates with the pressure to enhance the sealing effect. The combined sealing structure is particularly remarkable — the primary seal resists erosion from solid particles, the secondary rubber ring seal achieves the "zero leakage" standard, and polymer engineering plastic seals can be customized according to complex working conditions to adapt to diverse needs. 6. **Intelligent Emergency Protection System**: The built-in emergency seat sealing system allows the grease injection system to quickly inject sealant into the valve sealing surface under pipeline pressure when there is minor leakage or damage to the sealing surface, forming a temporary protective barrier. For media containing small solid particles, cleaners or lubricants can be injected through the injection system to clean and lubricate the sealing surface. The check valve designed at the bottom of the valve strictly prevents media leakage from this position in detail, safeguarding the system safety in all aspects.
